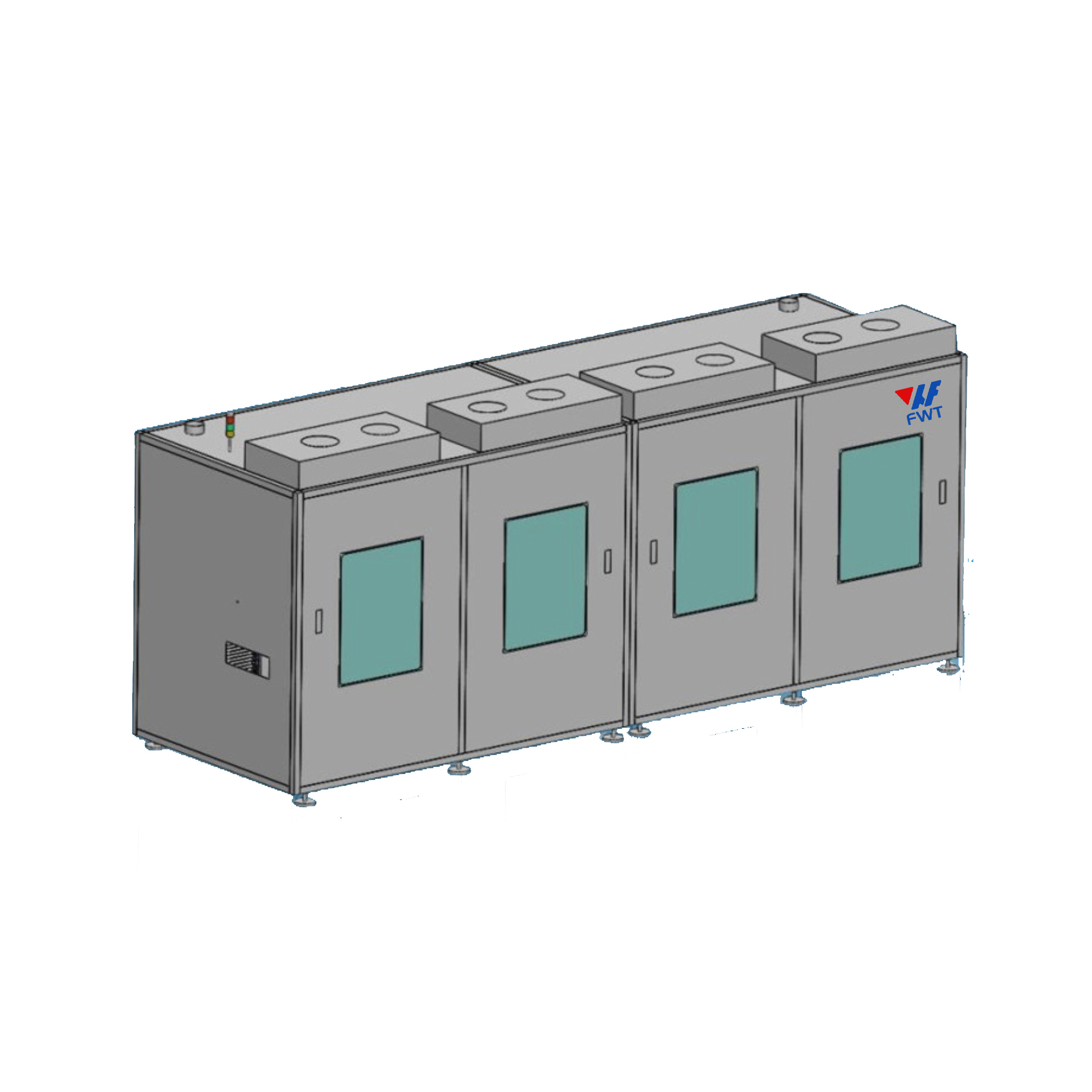

Basket type oven_3C Electronic Baking Series-Suzhou Forward Machinery Manufacturing Co.

Product Features

· The interior of the equipment and the material frame are all made of stainless steel with special surface treatment.

· Automatic loading and unloading, saving labor cost

· Flexible machine design, can be designed as a whole, can also be designed in sections, flexible to adapt to the customer's workshop site.

· The material frame transportation adopts anti-static Teflon wheel, anti-static index10^-7-10^-9

· Teflon material with high dust-proof level is used for contacting with fixtures, dust filtration adopts 1000 grade high-effective filters to meet the dust-free requirements, and the heating is a heating rod + SUS wind impeller to reduce the occurrence of dust.

· Temperature controlled by K-type temperature sensor, fast warming, uniform heating, high safety

· Equipment transmission mechanism lubrication, the use of our special selection of special lubricating grease, non-volatile, non-curing

Scope of Application

Glue curing for PCB, FPC, cell phone, computer, LED, miniLED, screen, semiconductor and so on.

Technical Parameters

Product Model	FWT-MN600
Equipment Size	300025002600（mm）
Fixture Size	4053055.2（mm）
Throttle	Starting power 35-40KW;No-load standby power 10-15KW;Full load constant temperature working power 20-25KW
Temperature Control	PID+SSR
Temperature Range	0-200℃
Temperature Accuracy	±2℃
Dust Rating	1000级
Main Controller	Industrial Computer
User Interface	Touchscreens
Power Supply	AC 380V 50 Hz
Capacity Requirements	CT18S/pcs
